XDL500

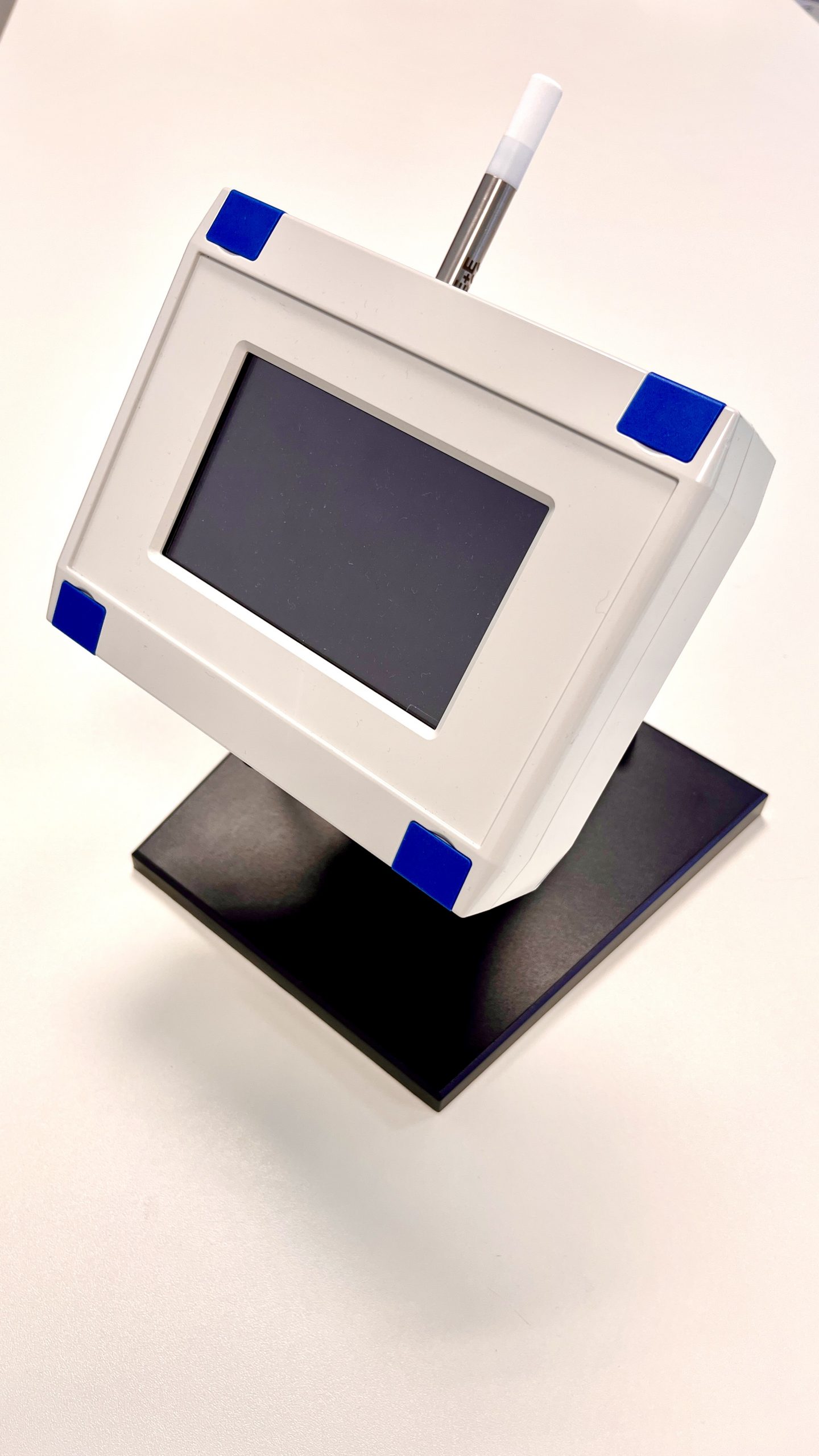

The XDL500 is a very powerful, stand-alone data logger with a 5-inch touch display. Almost all Modbus/RTU or TCP devices can be integrated via its two RS485 interfaces and Ethernet connection. Temperature, humidity, pressure, current, etc. are queried by corresponding Modbus sensors or devices. As this is a standard protocol, the XDL500 is manufacturer-independent. A wide variety of measuring devices can be combined and existing sensors can continue to be used.
Picture gallery
Technical Specifications
| Measurement parameters | Data from Modbus RTU/TCP devices |
| Maximum number of RTU devices | 20 |
| Maximum number of TCP devices | 20 |
| Max. power consumption | Device <10 W; total RTU devices: max. 30 W |
| Power supply | 24VDC ±10% min. 15W + external sensors |
| Temperature range | 5°C-30°C |
| Storage temperature | 0°C-50°C |
| Protection class | IP64 |
| Case material | PC+ABS FR(40) |
| Dimensions | 180mmx145mmx60mm |
| Weight | 0,8kg |
| Fire resistance class | UL94 V-0 |
| Max. operating height | 2000m ü. M. |
| Measurement interval | 1 sec to 24 hours |
| Startup time | <20s |

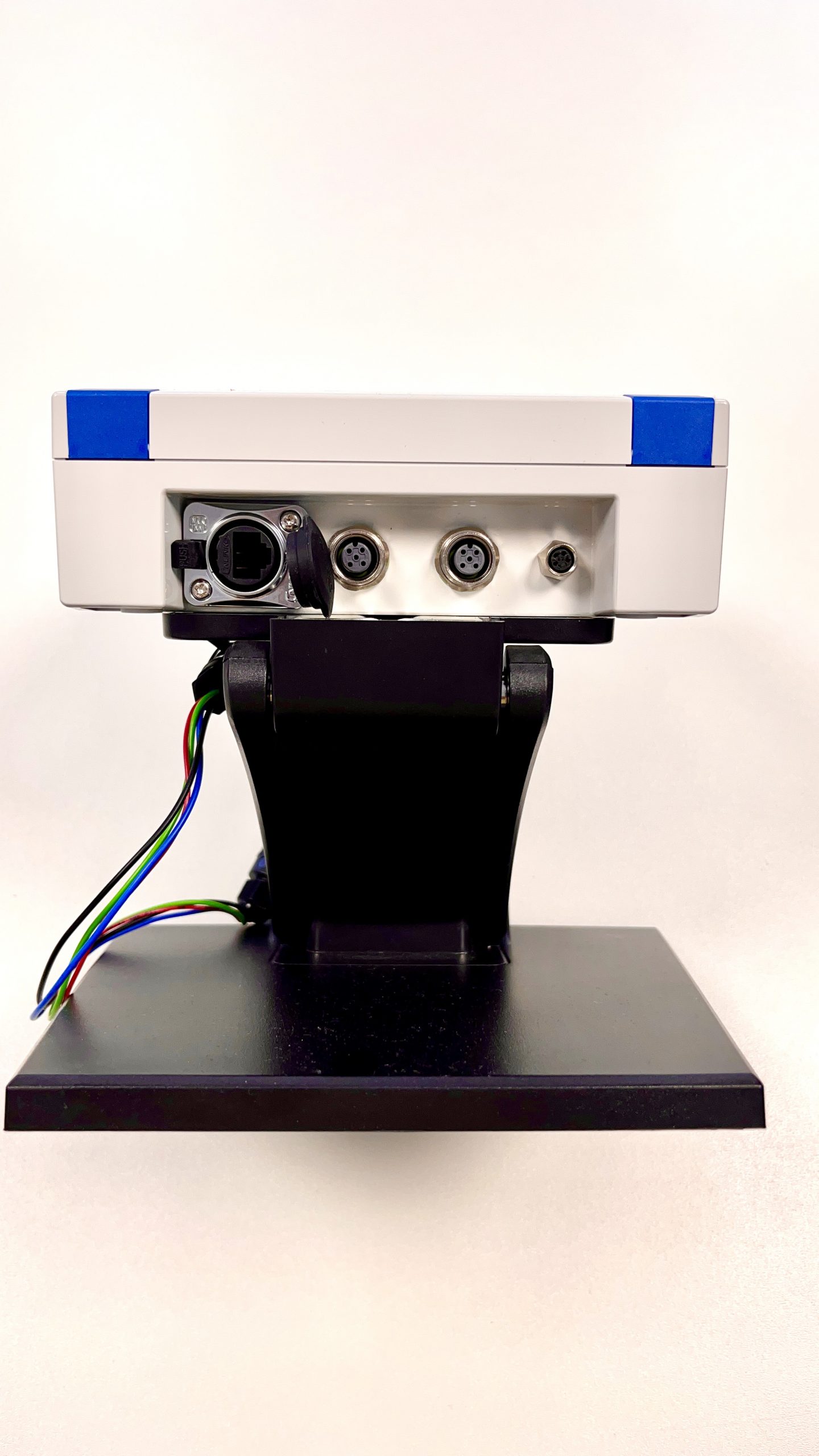

| Interfaces | 2xRS485 M12, 5-pin A-coded, Ethernet RJ45 |
| RTU cable length | Max. 100m |
| Protocols for external access | HTTP, Modbus TCP, MariaDB-SQL |
| CPU | BCM2712 quad-core Arm Cortex A76 @2.4GHz |
| Display | 5-inch touch display |
| Modbus TCP formats | Float32 IEEE |
| Languages | German, English |
