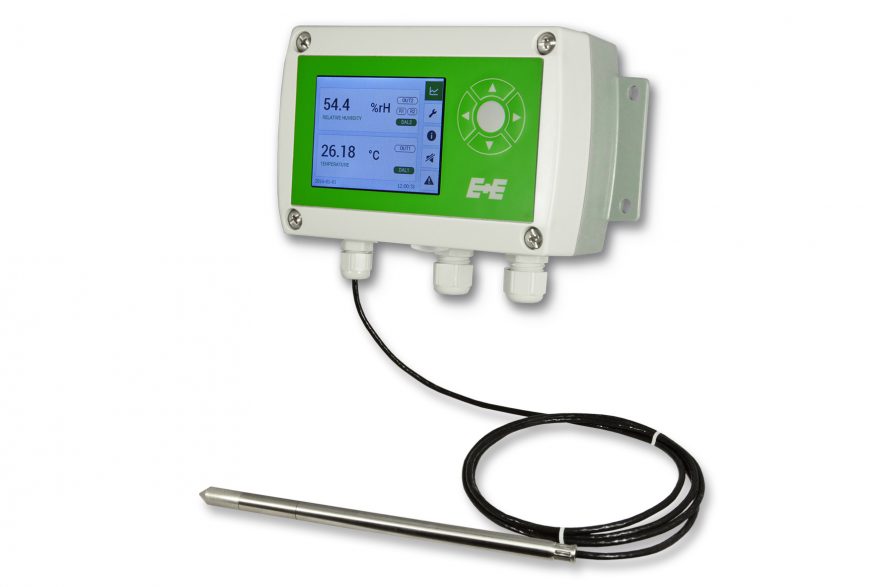

High-end humidity and temperature sensor for industrial applications
The EE310 is optimised for reliable use in industrial applications from -80 °C to +180 °C and 20 bar. In addition to highly accurate measurement of relative humidity (RH) and temperature (T), the transmitter also calculates all other humidity-related parameters. The measurement data can be read out via the MODBUS interface using MCPS and the XDL series.
Features
- 3.5″ TFT colour display
Simultaneous display of up to 4 measured variables
Freely selectable measured variables
Data logger for 20,000 values per measured variable
Stored values can be displayed as a graph
Fault diagnosis
Intuitive configuration with push buttons - Housing
Protection class IP65 / NEMA 4
Polycarbonate or stainless steel
Quick installation and easy maintenance - USB maintenance interface
Configuration and firmware update
Download of stored measurement data
4 status LEDs - Outputs
2 analogue outputs current / voltage
Fault signal according to NAMUR
Modbus RTU / Modbus TCP
Configurable via display or software - Measuring sensor
Working range from -80 °C to +180 °C
Pressure-tight up to 20 bar
E+E sensor coating
Pluggable measuring sensor
To enlarge, please click on the thumbnail.
RMS-LOG-L-D – DATA LOGGER WITH DISPLAY
The RMS-LOG-L-D stores up to 44’000 measured value pairs of the exchangeable Co2, differential pressure, humidity, temperature or low dew point sensors and sends them via LAN interface to our MCPS. Thanks to its autonomous mode of operation, the logger can display current measured values, visual and acoustic alarms, even if the power supply and communication should fail in the meantime.
The RMS-LOG-L-D offers several advantages:
- Memory of up to 44,000 pairs of readings.
- Visual and audible alarm conditions
- Autonomous operation in case of failure
- Redundant power supply
- FDA CFR 21 Part 11 / GAMP5 compliant– Data sheet (EN)
To enlarge, please click on the thumbnail.

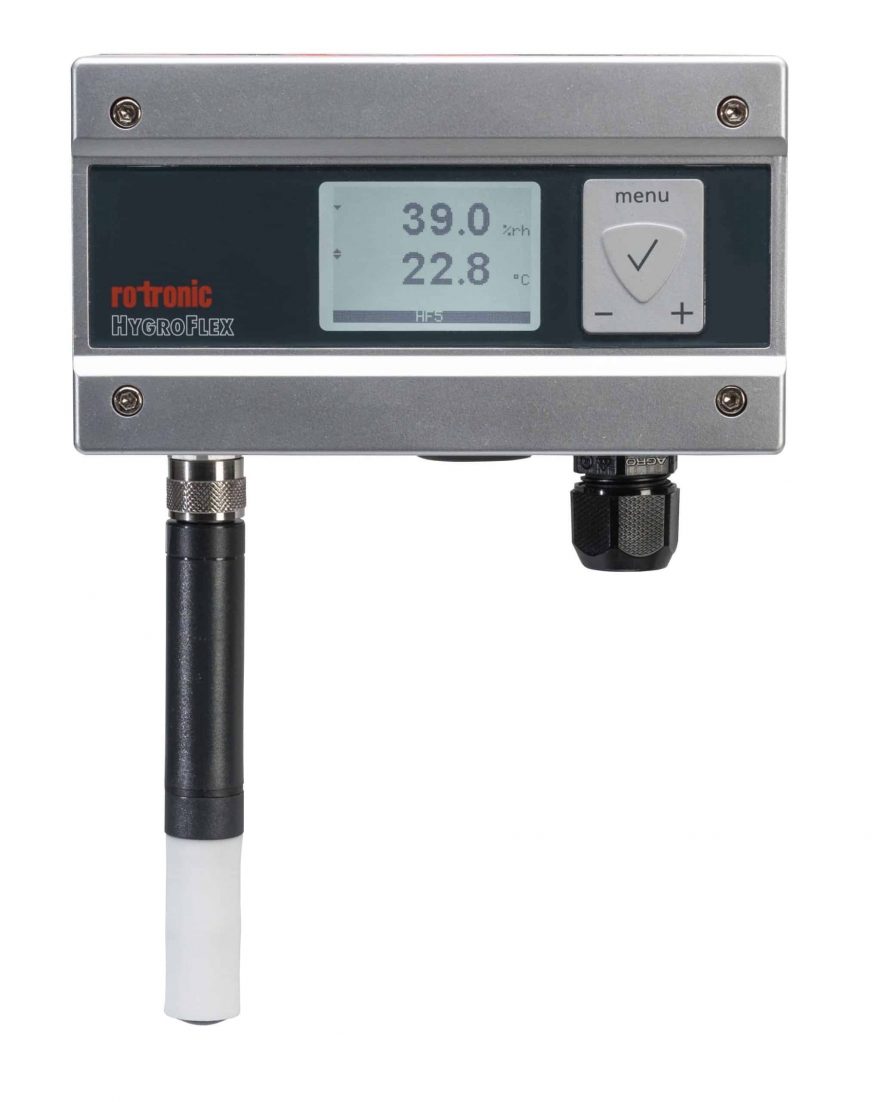

HygroFlex5 – HF5 – Transmitter
The new generation of instruments impresses with a unique calibration and adjustment process as well as many other unbeatable innovations. At the same time, sensor technology has been taken to the extreme: The HygroFlex HF52, HF53, HF54 and HF56 transmitters offer you a guaranteed system accuracy of < 0.8 %rh and < 0.1 K at 23 °C. Measures relative humidity, temperature and calculates all psychrometric parameters in HVAC, industrial and pharmaceutical applications.
- Measures relative humidity, temperature and the dew point.
- Handles all psychrometric calculations
- Guarantees absolute reproducibility
- Highest possible measuring accuracy
- Analogue signals freely scalable
- Network-compatible thanks to digital outputs
- Mains and low voltage version
- Updates via Internet possible
- Available with metal housing
To enlarge, please click on the thumbnail.
T&D TR72-nw
The T&D TR-7 Series LAN data loggers can be easily integrated into an existing network. They are connected via a standard network cable (RJ45) and can then be configured from anywhere via a web browser and read out with MCPS.
- Measuring range 0 to +55 °C / 10 to 95% rH (supplied sensor) optionally -25 to 70 °C / 0 to 99% rH with SHA-3151
- Network connection RJ45
- 100BASE-TX/10BASE-T
- Battery operation with 2x AA for up to 1.5 years
- PoE power supply possible
- Humidity-temperature sensor (THA-3001) included
- Memory for 8,000 measurements per channel– Data sheet (EN)
To enlarge, please click on the thumbnail.
T&D TR72-nw-S
The T&D TR-7 Series LAN data loggers can be easily integrated into an existing network. They are connected via a standard network cable (RJ45) and can then be configured from anywhere via a web browser and read out with MCPS.
- Measuring range -25 °C to +70 °C / 0 to 99% rH (supplied probe)
- Network connection RJ45
- 100BASE-TX/10BASE-T
- Battery operation with 2x AA for up to 1.5 years
- PoE power supply possible
- Humidity-temperature sensor (SHA-3151) included
- Memory for 8,000 measurements per channel– Data sheet (EN)
